Topside Control Programming Video

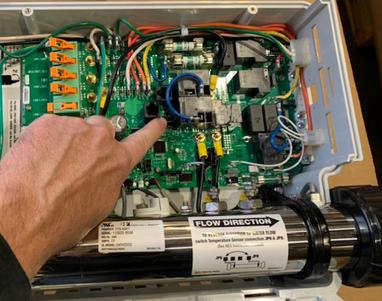

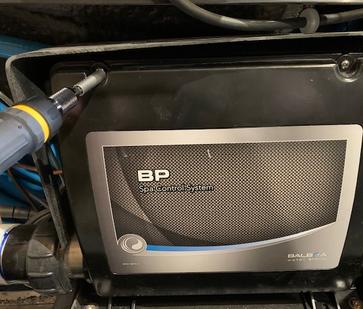

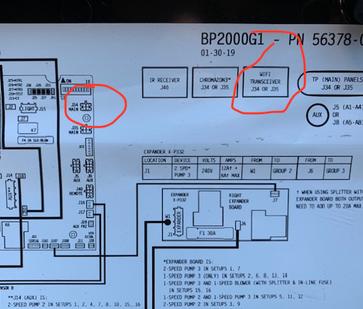

STEP #2 Remove front panel of pack and look on back to confirm location of wifi port

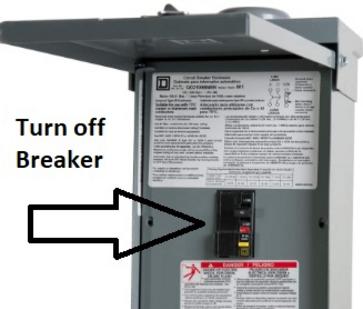

STEP #1 Turn off power to hot tub at the breaker
How To Use Wifi Video

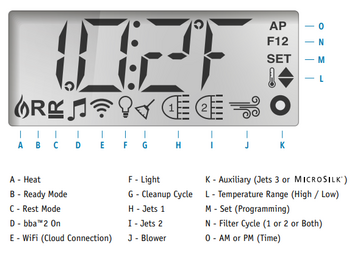

Topside Display icons
Choose the reference card for the control that matches the one on your hot tub.

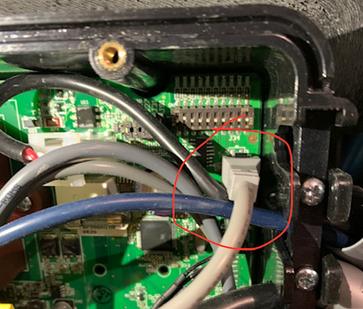

STEP #3 Plug wifi unit into port indicated on Step #2. Be careful to plug it in straight as to not bend/damage any pins.

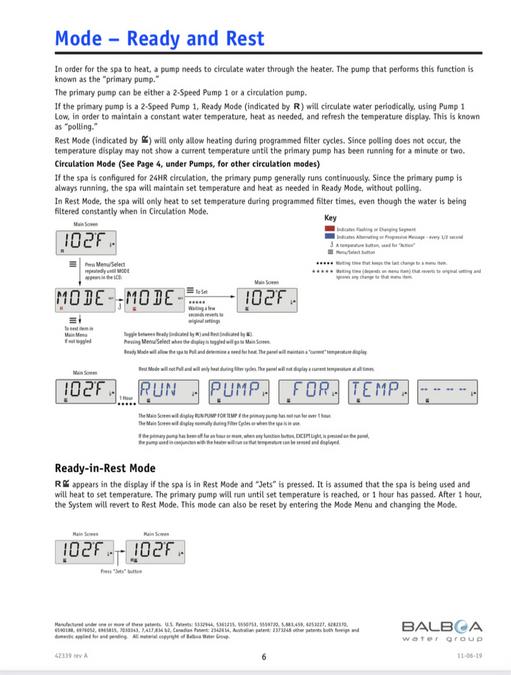

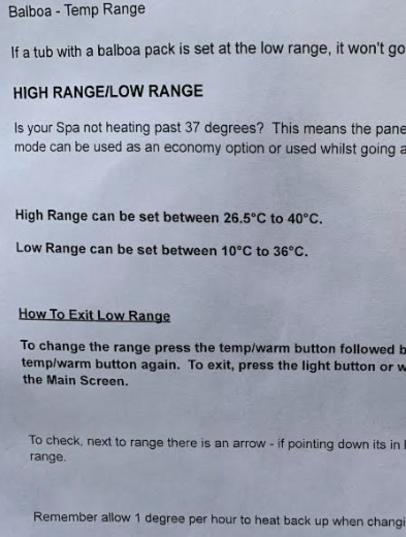

INSTRUCTION CARDS
Cover Rock-it lifter installation video
Quick Tips Videos
Balboa 50350 WIFI installation
Hot Tub Fuses--Easy way to Test.
ASTM F 1346-91 73RF label for bylaw permit approval.
STEP #4 Replace front cover of spa pack securely and turn power back on at the breaker
STEP #6 Mount module inside hot tub. DO NOT remove adhesive backing until you have confirmed the location has a clear signal with your router prior to permanently securing it. Make sure it is in the "up" position.
STEP #7 ENJOY your hot tub!
Bluetooth audio system
STEP #5 Download BWG app and connect to your hot tub.
Hot Tub Jet Replacement
Adjusting, removing/installing Hot Tub Jets
Quick Tips Video

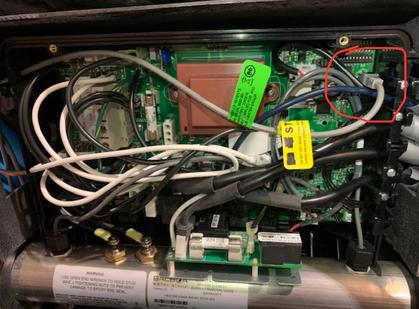

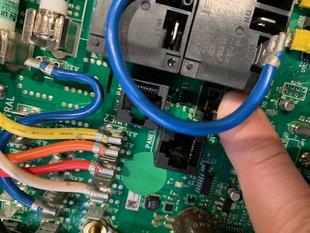

WaterWay Wifi unit Installation: Plugs into JP18 (4 pin) as pictured, (make sure Gfci is turned off prior to opening spa pack and do not turn on until pack is closed and installation complete).
Follow instruction guide and note that the Wifi antenna must not be placed near motors or other electronics that may interfere with signal. If signal strength is not strong enough you may have to install the wifi antenna in the cabinet of the spa and if so, a 2 3/4" hole saw will be required.
Pairing Tips Video
